6 colors High Speed Central Drum Flexography Plastic Printing Machine
- Voltage
- 380V
- Max film width
- 600/800/1000/1200
- Speed
- 180m/min
- Material
- Paper, PP, PET, PE, PVC, Non-woven Fabric
6 colors High Speed Central Drum Flexography Plastic Printing Machine
Feature
1: After board mounting and registration, no need to register
2: Replacement of 1 set of roller plate, only need 20 minutes
3: The registration precision is: ± 0.15mm, it is registration motor
4: Changing the print speed will not affect the accuracy of the registration
5: With PLC / camera / closed blade / ceramic anilox roller
6: It is motor register
----------------------------------------------------------------------------------------------------------------------------------
Specification
|
Model |
SHDB-61400 |
|
Printing material |
Paper, PP, PET, PE, PVC, Non-woven Fabric |
|
(MAX) Printing width |
1360mm |
|
( MAX) Material width |
1400mm |
|
MAX Printing length |
300-800mm |
|
Printing speed |
180m/min |
|
Machine speed |
200m/min |
|
Plate thickness |
2.38mm |
|
Ceramic Anilox roller |
800 line |
|
Unwinder/rewinder dia |
1200mm |
|
Register |
Motor register |
|
Printing way |
Full width on one side |
Machine main details

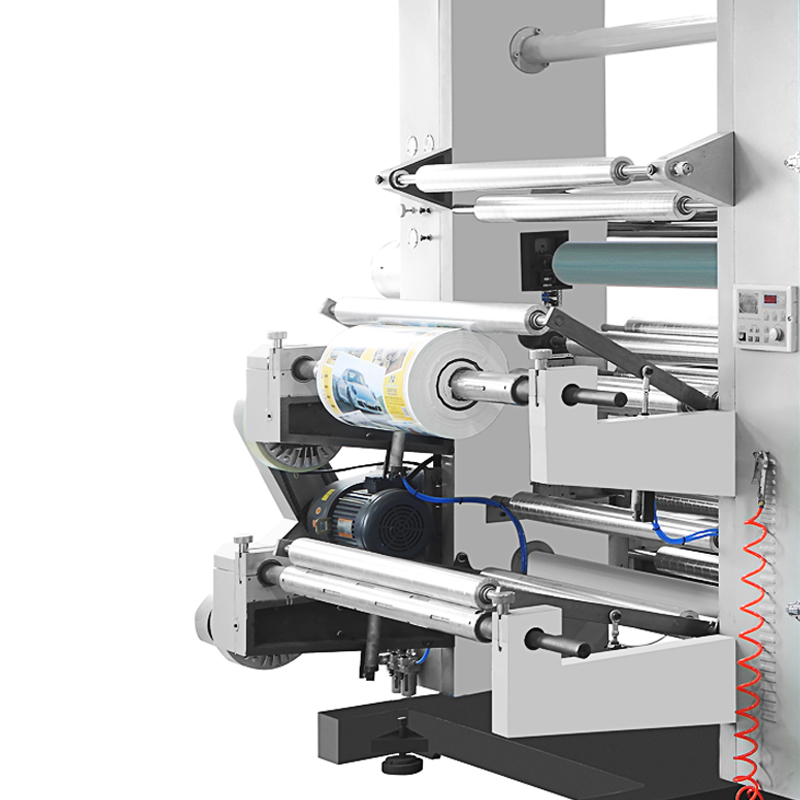

Unwinder and rewinder part:
With double manual unwinder and rewinder , the rewinder is with pressure roller

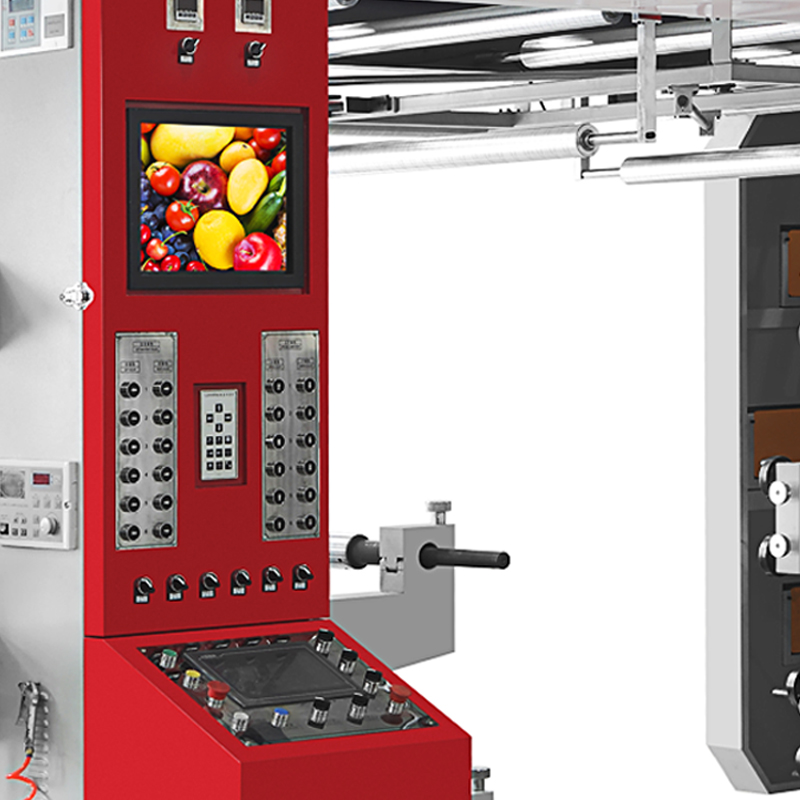

PLC and camera
Printing and transferring parts:
Closed chamber: to make speed faster and the ink never splashs
Ceramic anilox roller to make the finished samples more accurate
Central roll : plate roller and traction roller and anilox roller on the central roll to work together

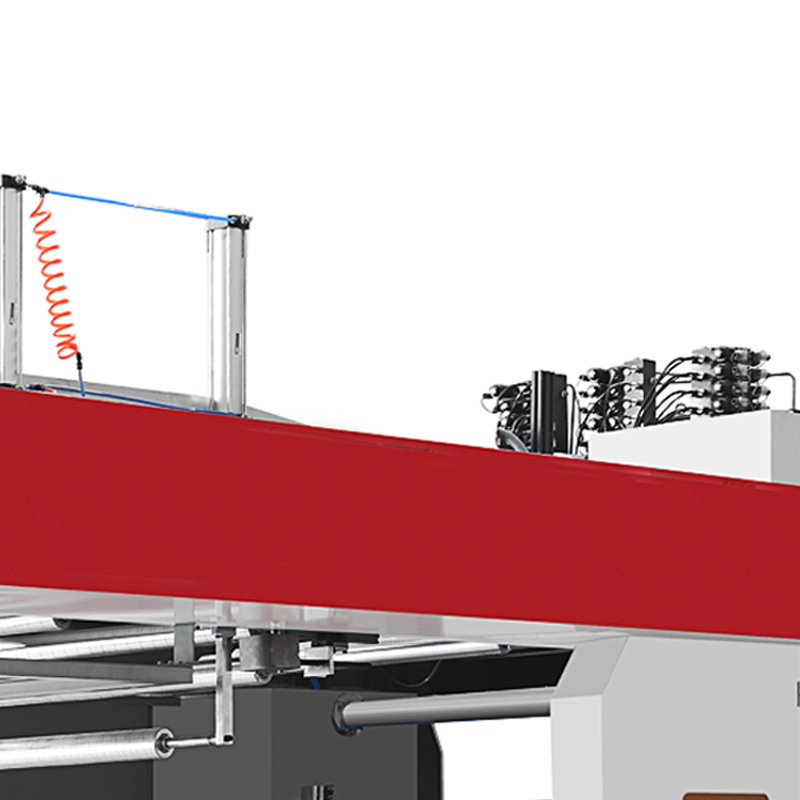

Drying part:
The oven length is 3.7 meters , all printing part is heat wind circulating
Machine workshop and loading pictures
